Description

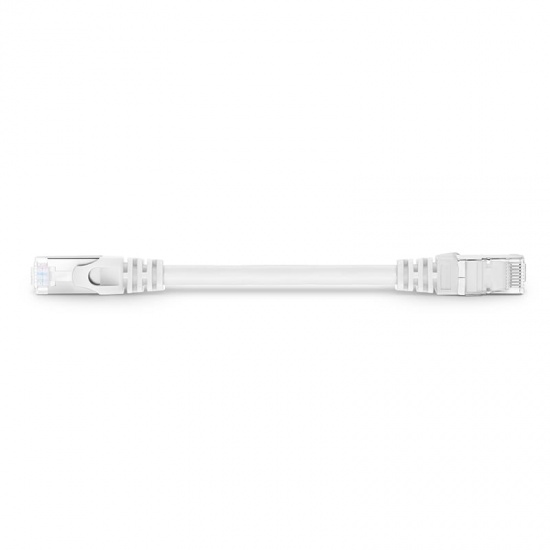

Cat6a Snagless Shielded (SFTP) Ethernet Network Patch Cable, 26AWG, 10GBase-T
Cat6a network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 500MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories.
The? cat6a patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CM, which is durable, flame-retardant, resistant to bending.
Description
Cable Type
Cat6a Snagless
Shielding Type
Shielded (SFTP)
Cable Jacket
PVC CM (Round)
Length
6in (0.15m) (Including Plugs)
Conductor Material
Pure Bare Copper
Conductor Type
Stranded
Data Rate Support
10GBase-T
Standard Bandwidth
500MHz
Gauge (AWG)
26 (7/0.16mm)
Cable Outer Diameter (mm)
6.2 ? 0.3
Max Transmission Distance
100m
Twisted Pairs
4 Pairs
Wire Scheme
T568B, Straight
Standard
ISO/IEC 11801, ANSI/TIA-568-C.2
Operating Temperature
-20 to +75?C (-4 to 167?F)
Installation Temperature
-10 to +50?C (14 to 122?F)
