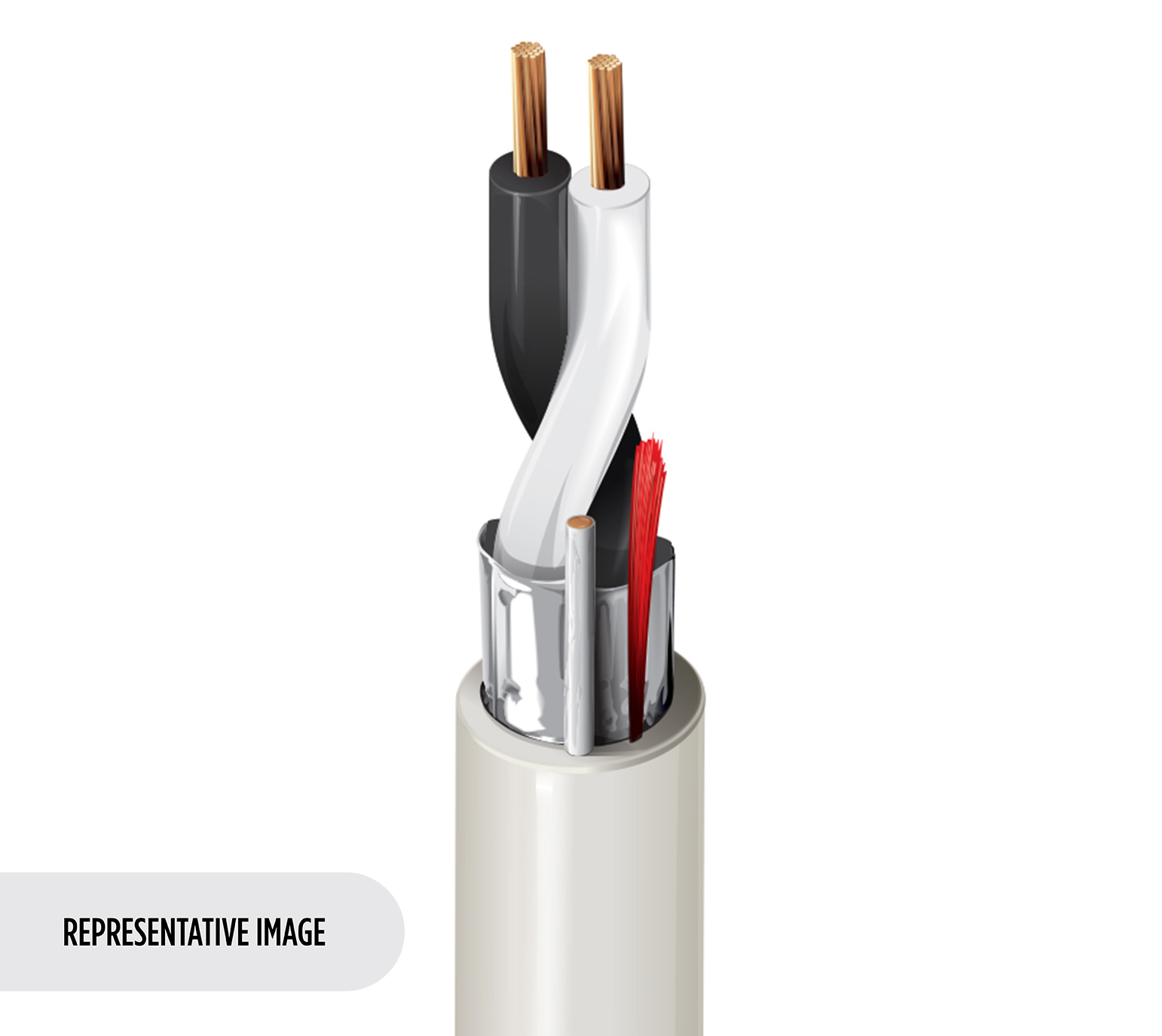

Belden 5400FE Security & Sound, 2 Conductor 20 AWG, BC, Shielded, CMR Price in Dubai UAE

Belden 5400FE Security & Sound, 2 Conductor 20 AWG, BC, Shielded, CMR Price in Dubai UAE

SKU : Belden 5400FE Categories : , , Tag :
Chat with AZA AE
Whatsapp Instagram Facebook Twitter Linkedin

Inclusive of VAT

  • Condition : New
  • Express Shipping
  • Fulfilled by AZA AE
  • Free Shipping All Over UAE
  • All major payment methods accepted.

Description

Product Overview
Suitable Applications Intercom/PA Systems, Sound/Audio Systems
Construction Details
CONDUCTOR
Element Number of Element AWG Stranding Material
Conductor(s) 2 20 7×28 BC – Bare Copper
INSULATION
Element Material Thickness Color Code
Conductor(s) PP – Polypropylene 0.008 in (0.20 mm) Black, Red
OUTER SHIELD MATERIAL
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
OUTER JACKET MATERIAL
Material Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.142 in Yes
Cable Diameter (Nominal) 0.142 in (3.61 mm)
Electrical Characteristics
ELECTRICALS
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 10.3 Ohm/1000ft (33.8 Ohm/km) 40 pF/ft (130 pF/m) 72 pF/ft (240 pF/m) 3.75 Amps per conductor @ 25?C
Nom. Outer Shield DCR 16.7 Ohm/1000ft
VOLTAGE
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
TEMPERATURE
UL Rating Operating
75?C -20?C to +75?C
BEND RADIUS
Stationary Min. Installation Min.
1.4 in (36 mm) 1.4 in (36 mm)
Max. Pull Tension 37 lbs (17 kg)
Bulk Cable Weight 13 lbs/1000ft (19 kg/km)
Standards and Compliance
Environmental Suitability Indoor – Riser, Indoor
Flammability / Fire Resistance UL1666 Riser, FT4, IEC 60332-1-2
NEC / UL Compliance Article 800, CMR
CEC / C(UL) Compliance CMG
CPR Euroclass Eca
European Directive Compliance EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance China RoHS II (GB/T 26572-2011)
Plenum Number 6400FE
History
Update and Revision Revision Number: 0.346 Revision Date: 07-02-2021
