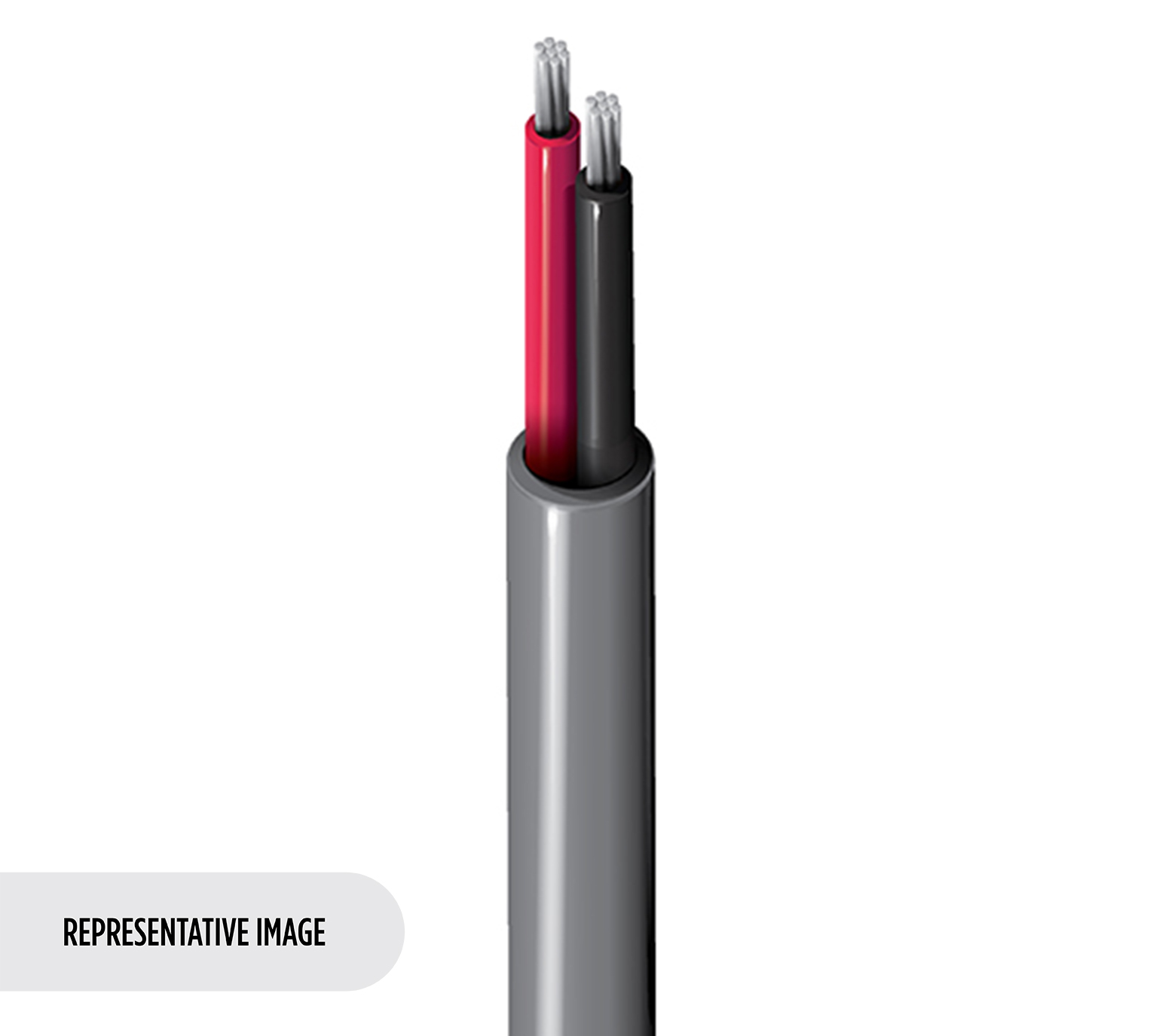

Belden 8461 Electronic, 2 C #18 Str TC, PVC Ins, PVC Jkt, CMG Price in Dubai UAE

Belden 8461 Electronic, 2 C #18 Str TC, PVC Ins, PVC Jkt, CMG Price in Dubai UAE

SKU : Belden 8461 Categories : , , Tag :
Chat with AZA AE
Whatsapp Instagram Facebook Twitter Linkedin

Inclusive of VAT

  • Condition : New
  • Express Shipping
  • Fulfilled by AZA AE
  • Free Shipping All Over UAE
  • All major payment methods accepted.

Description

Product Overview
Suitable Applications low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, ?); line level audio; computer communication; panel wiring
Construction Details
CONDUCTOR
Element Number of Element AWG Stranding Material
Pair(s) 1 18 7×26 TC – Tinned Copper
INSULATION
Element Material Thickness Color Code
Pair(s) PVC – Polyvinyl Chloride 0.022 in (0.56 mm) Black & White
OUTER JACKET MATERIAL
Material Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.027 in (0.69 mm) 0.234 in
Cable Diameter (Nominal) 0.234 in (5.94 mm)
Electrical Characteristics
ELECTRICALS
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 5.86 Ohm/1000ft (19.2 Ohm/km) 22 pF/ft (72 pF/m) 4.8 Amps per Conductor at 20?C
VOLTAGE
UL Voltage Rating
300 V (CMG), 300 V (CL3)
Mechanical Characteristics
TEMPERATURE
UL Rating Operating
-20?C to +80?C -20?C to +80?C
BEND RADIUS
Stationary Min. Installation Min.
2.3 in (58 mm) 2.3 in (58 mm)
Max. Pull Tension 45 lbs (20 kg)
Bulk Cable Weight 26 lbs/1000ft (39 kg/km)
Standards and Compliance
Environmental Suitability Indoor
Sustainability CA Prop 65
Flammability / Fire Resistance UL1685 FT4 Loading, FT4, IEC 60332-1-2
NEC / UL Compliance Article 725, Article 800, CMG, CL3
CEC / C(UL) Compliance CMG
CPR Euroclass Eca
European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance China RoHS II (GB/T 26572-2011)
History
Update and Revision Revision Number: 0.346 Revision Date: 07-02-2021
