Description

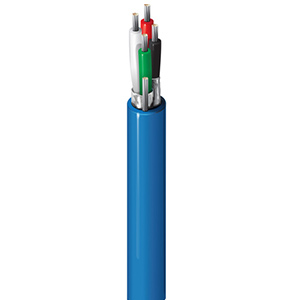

Belden-8723? 305mtr

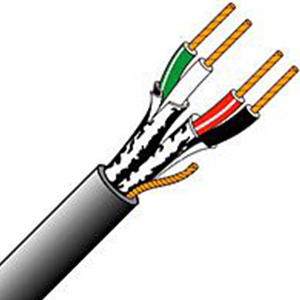

The 8723 060U1000 is a 2-pair Multi-conductor Cable with tinned-copper conductors, polypropylene insulation, twisted-pair, individually Beldfoil? shielded (100% coverage) and PVC jacket.
- 52? impedance
- 0.17?H/m nominal inductance
- 33pF/ft nominal capacitance conductor to conductor
- 62pF/ft nominal capacitance conductor to other conductor and shield
- 66% nominal velocity of propagation
Applications
Industrial
