Description
Product Description

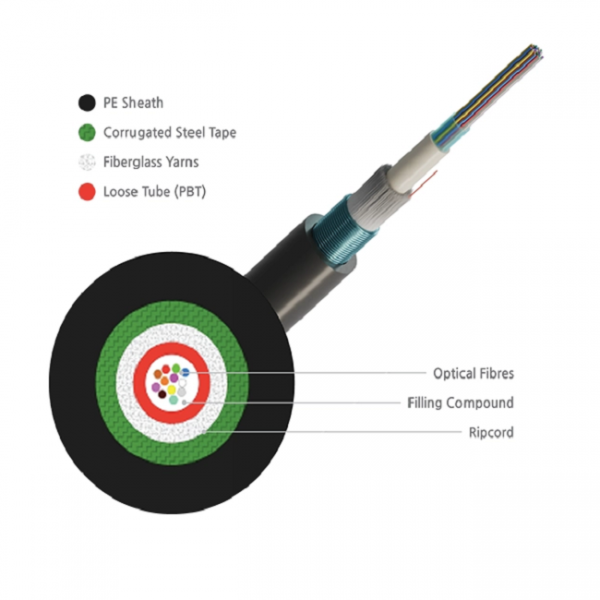

| FO OD cable, Unitube, Steel Armored w/Glass yarn Strength Member, SM 9/125, 6C, PE – ES2OLPUA-FC006 |
MECHANICAL & ENVIRONMENTAL CHARACTERISTICS
Crush Performance
3000 N/10cm
IEC 60794-1-2-E3, Δα Reversible
Bending Radius
Static: 20 x D
Dynamic: 30 x D
IEC 60794-1-2-E6, Δα≤0,05 dB
Water Penetration
3[m] Sample, 1[m] Head, 24[h]
IEC 60794-1-2-F5, No Leakage
Temperature Range
Installation
-15 to +55 C IEC 60794-1-2-F1, Δα≤0,05 dB/km
Operation
-40 to +70 C
Transport and Storage
-40 to +70 C
