| Application |
(1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Product Type |

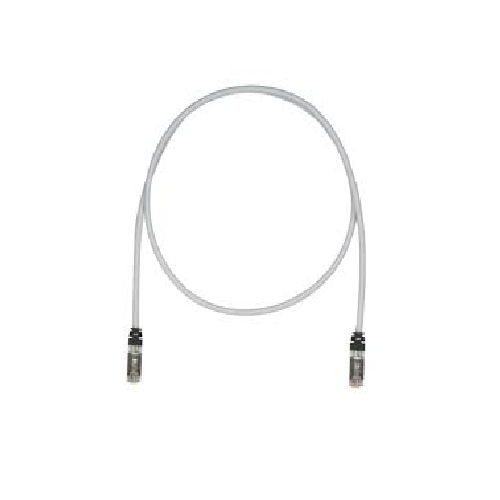

Shielded Patch Cord |
| Conductor Gauge (AWG) |
26 |
| Conductor Gauge (kcmil) |
0.3 |
| Sub Brand |
Pan-Net? |
| Performance Level |
Category 6A |
| Conductor Type |
Stranded |
| Cable Construction |
S/FTP |
| Patch Cord Type |
Shielded |
| Plug Housing Material |
Polycarbonate |
| Connector 1 Type |
Modular Plug |
| Connector 2 Type |
Modular Plug |
| Overall Length (m) |
1 |
| Nominal Cable Outside Diameter (mm) |
6.1 |
| Wiring Scheme |
T568B |
| Maximum Operating Temperature (?C) |
60 |
| Minimum Operating Temperature (?C) |
-10 |
| Maximum Storage Temperature (?C) |
70 |
| Minimum Storage Temperature (?C) |
-40 |
| Boot Color |
Black |
| Color |
International Gray |
| Flammability Rating |
Dual Rated (CM/LSZH) |
| Standards Met |
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant |
60603-7 |
| PoE Compatibility |
PoE/PoE+/PoE++ |
| Plug Type |
8 Position |
