| Application |
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP) |
| Product Type |

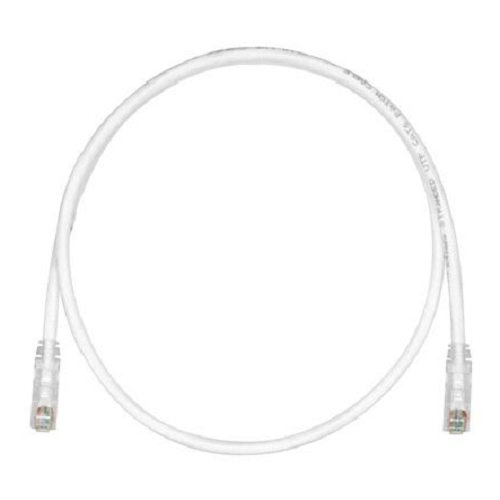

Patch Cord |
| Conductor Gauge (AWG) |
24 |
| Conductor Gauge (kcmil) |
0.4 |
| Sub Brand |
Pan-Net® |
| Performance Level |
Category 6 |
| Conductor Type |
Stranded |
| Cable Construction |
U/UTP |
| Patch Cord Type |
Unshielded |
| Plug Housing Material |
Polycarbonate |
| Jacket Material |
Polyvinyl Chloride |
| Connector 1 Type |
Modular Plug |
| Connector 2 Type |
Modular Plug |
| Overall Length (m) |
0.5 |
| Nominal Cable Outside Diameter (mm) |
6 |
| Wiring Scheme |
T568B |
| Maximum Operating Temperature (°C) |
60 |
| Minimum Operating Temperature (°C) |
-10 |
| Maximum Storage Temperature (°C) |
70 |
| Minimum Storage Temperature (°C) |
-40 |
| Boot Color |
Clear |
| Color |
Off White |
| Flammability Rating |
CM |
| Standards Met |
Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant |
60603-7 |
| PoE Compatibility |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type |
8 Position |
| RapidID™ Enabled |
Yes |
| Part Features |
100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
